Events & Frames
Create events, add frames, and configure every capture option per frame — countdown, retakes, GIF, stickers, survey and timeouts.

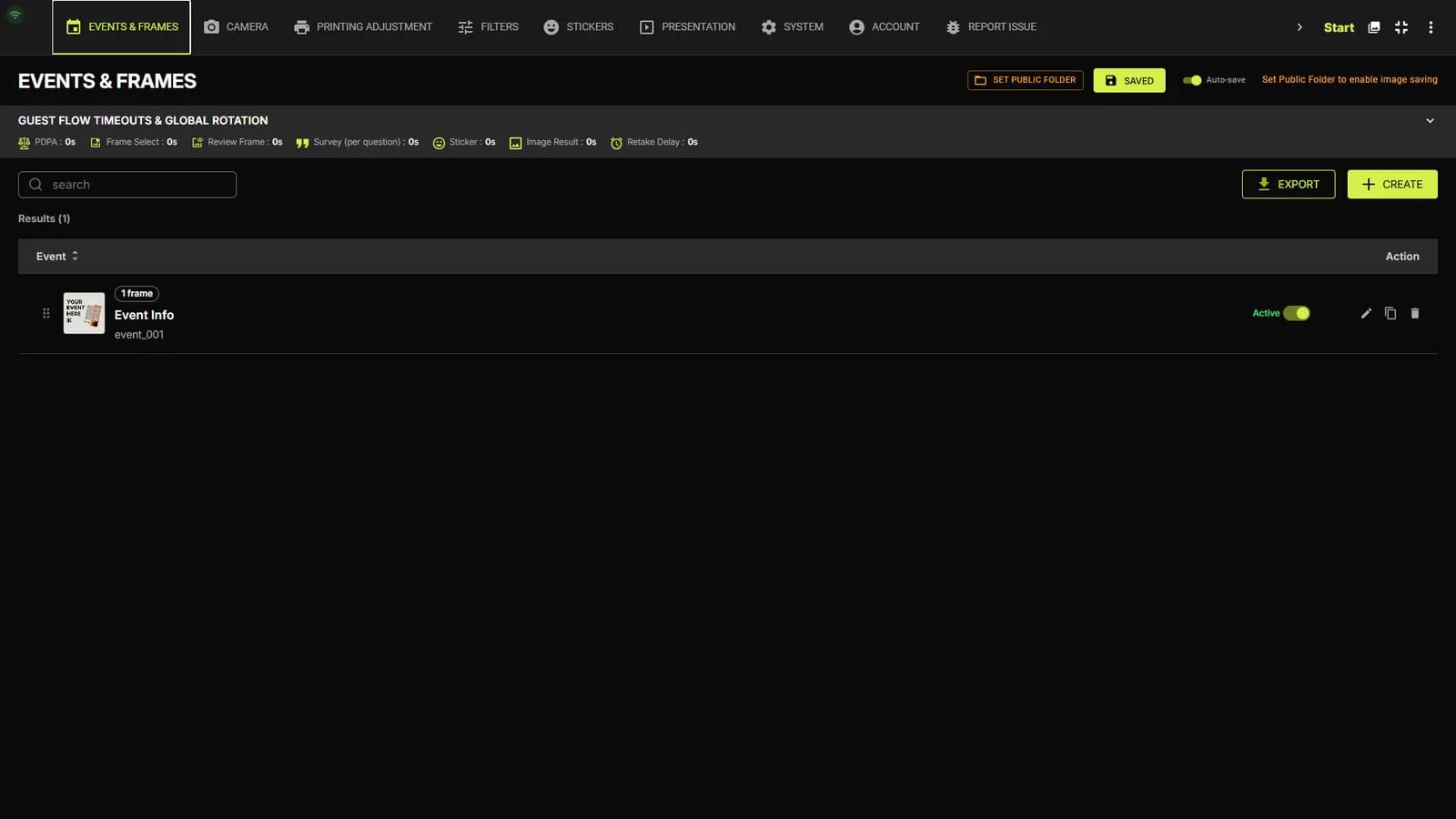

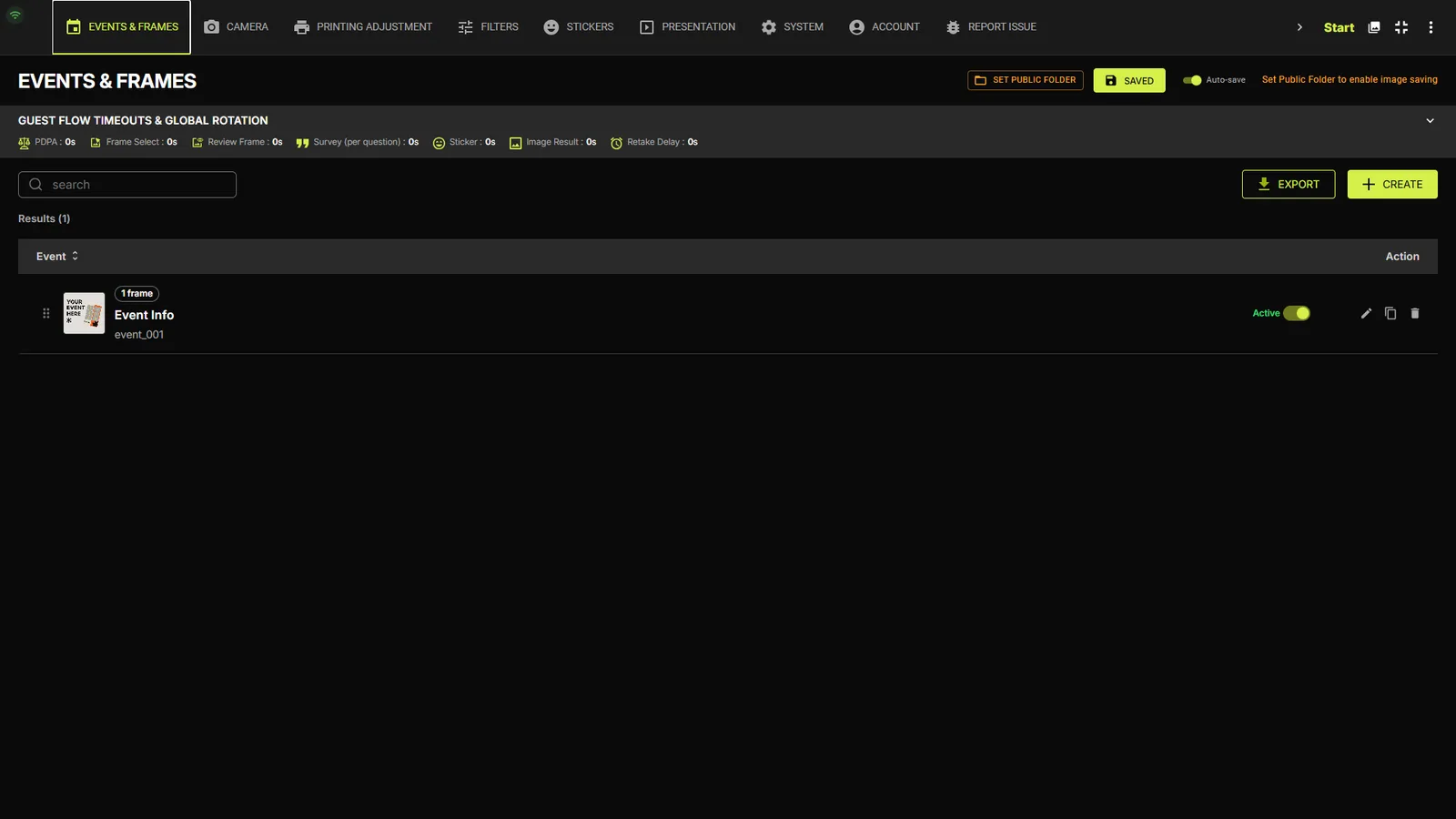

The Events & Frames tab
Open Settings
Tap the ⚙ icon in the top-right corner of the event screen. The Settings hub opens on the EVENTS & FRAMES tab, listing every event with its Active toggle, edit, duplicate and delete actions, plus search and sorting.
TipSAVE NOW and the Auto-save switch sit at the top-right of the editor. With Auto-save on, every change persists as you go.

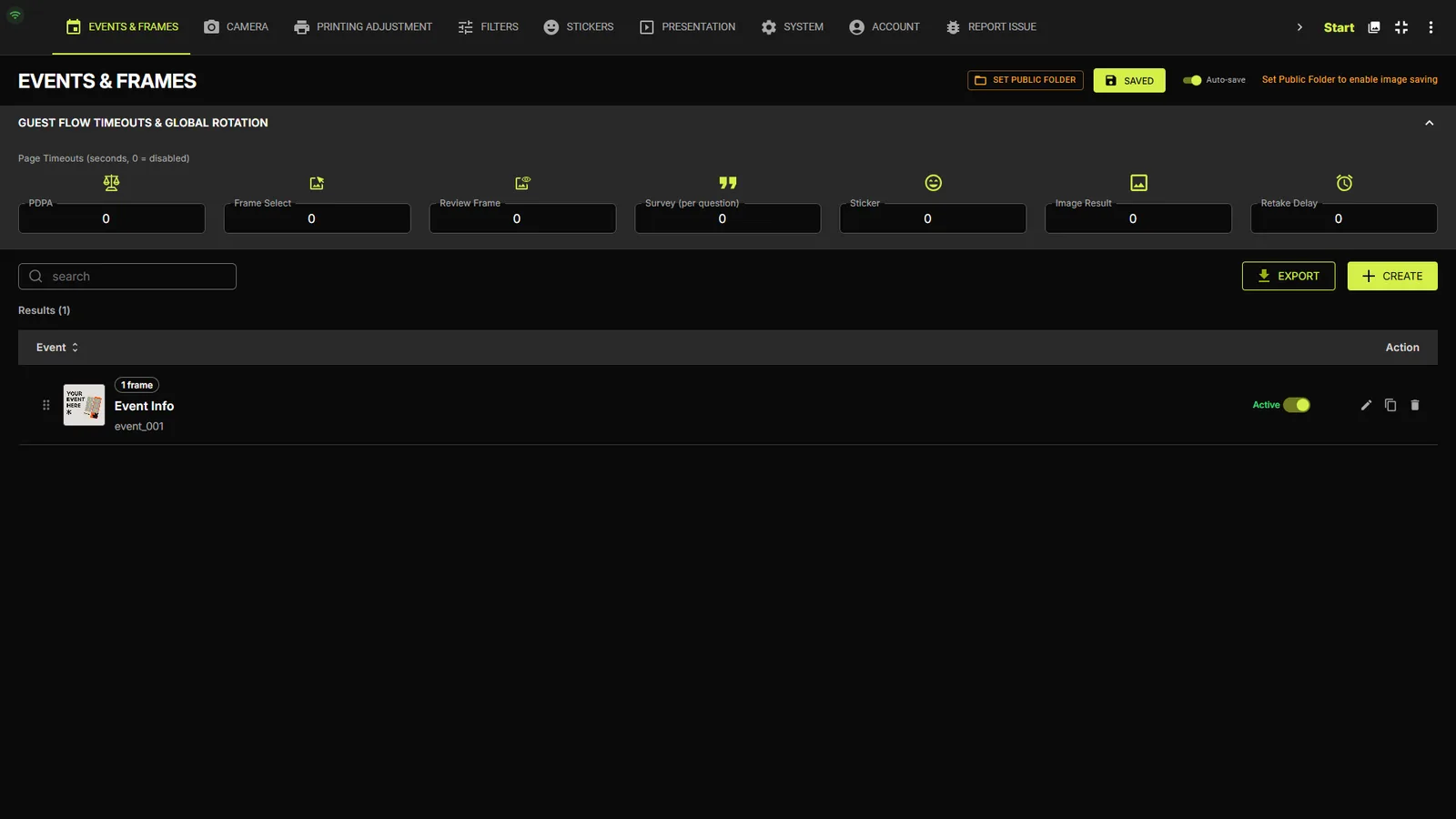

Guest flow timeoutsPro
Expand the GUEST FLOW TIMEOUTS & GLOBAL ROTATION bar to set auto-advance timers for each guest page: PDPA, Frame Select, Review Frame, Survey (per question), Sticker, Image Result and Retake Delay. 0s disables the timer for that page.
Creating & editing events

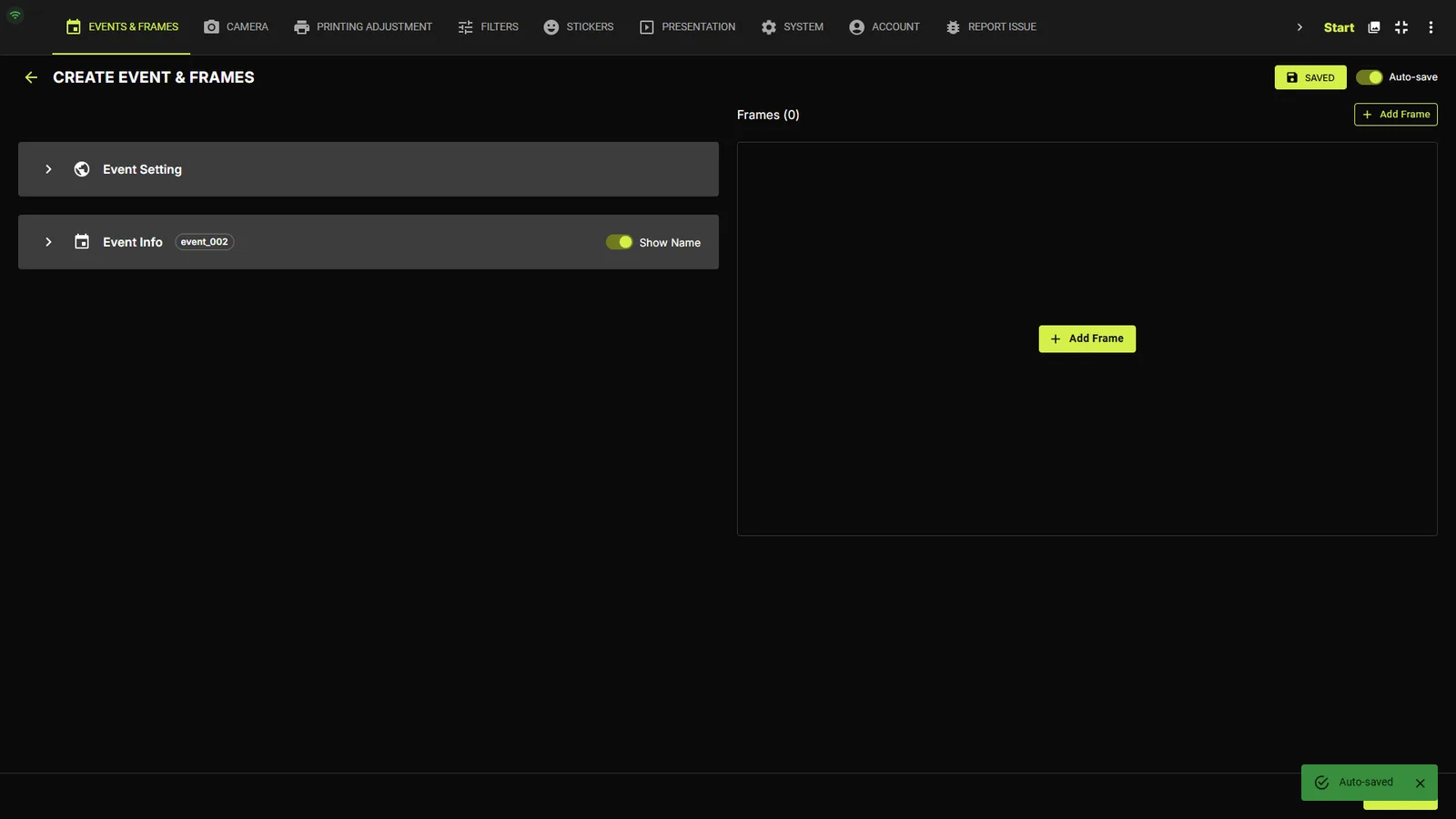

Press CREATE
The CREATE EVENT & FRAMES overlay opens. Fill in the event name (the Event ID like event_001 is generated automatically) and add one or more frames with Add Frame.

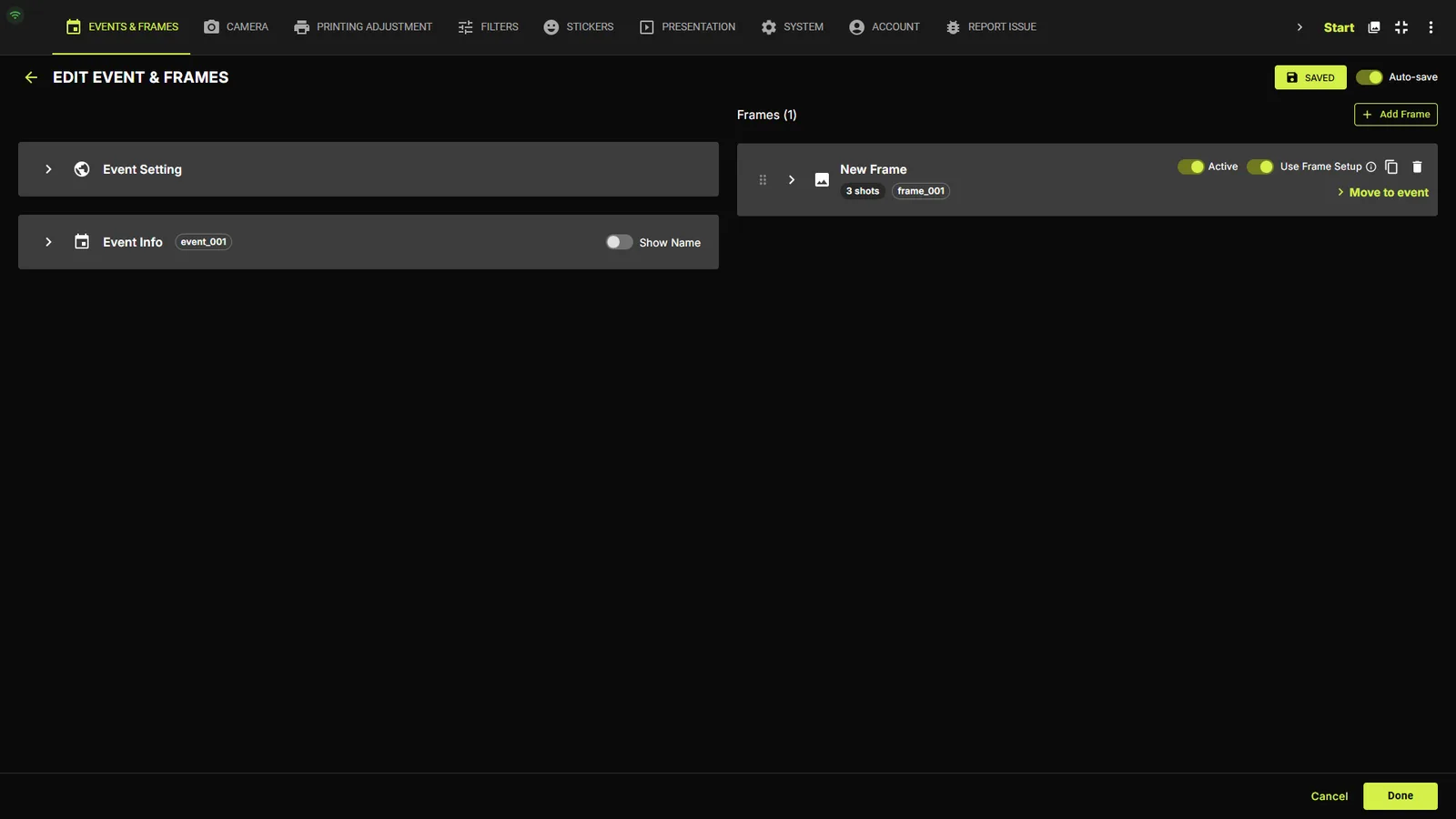

The event editor
Press the pencil icon on an event row to open EDIT EVENT & FRAMES: Event Setting and Event Info accordions on the left, the frame list on the right. Each frame row has Active and Use Frame Setup toggles, duplicate/delete icons and a Move to event action.

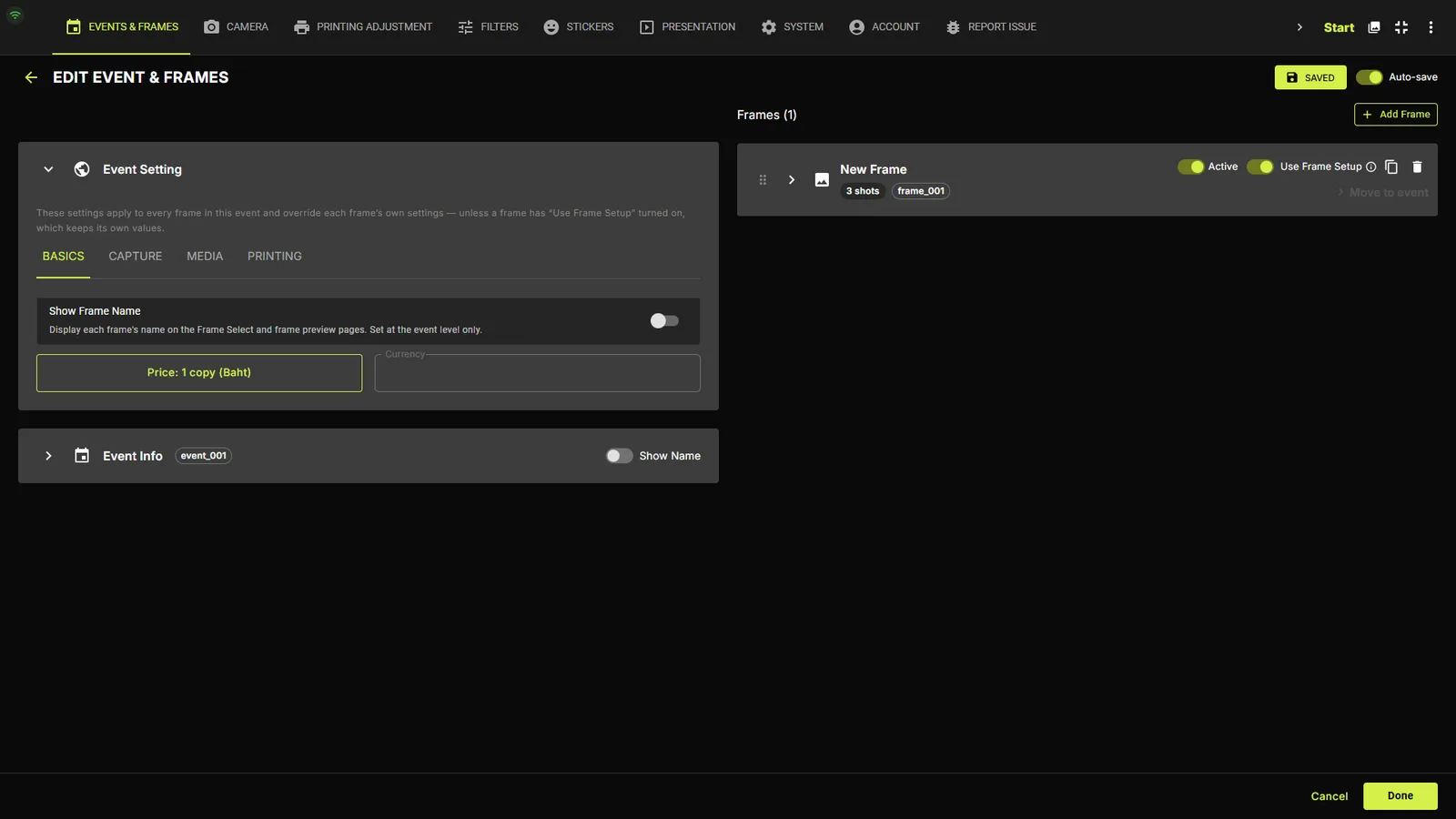

Event Setting — cover & pricing
Holds the event Cover Image (shown on the attract screen), the currency (default Baht) and event-level price rows. A frame with Use Frame Setup enabled overrides the event pricing with its own.

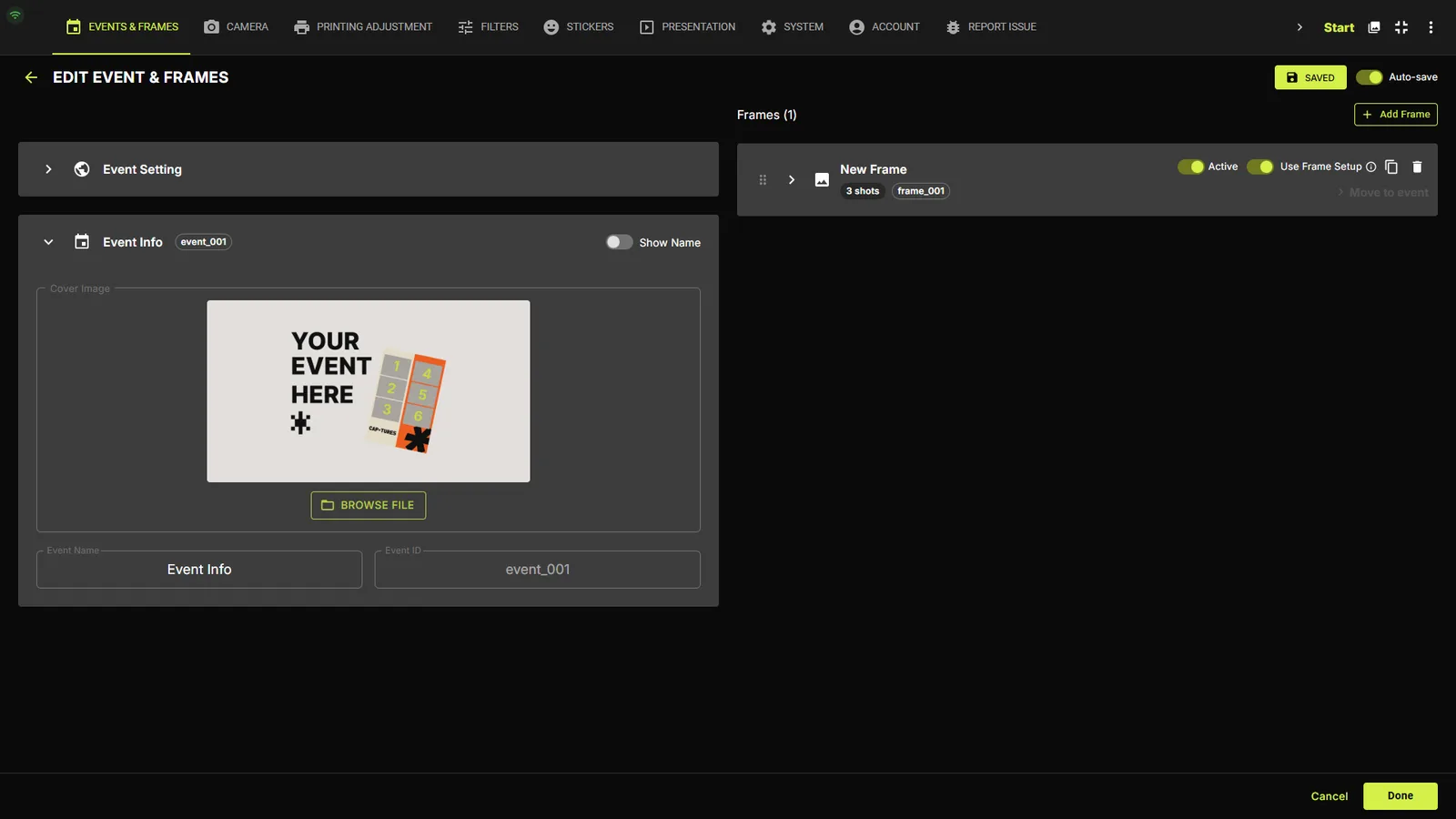

Event Info
Holds the event name, the read-only Event ID, and the Show Name toggle that displays the event title on the attract screen.

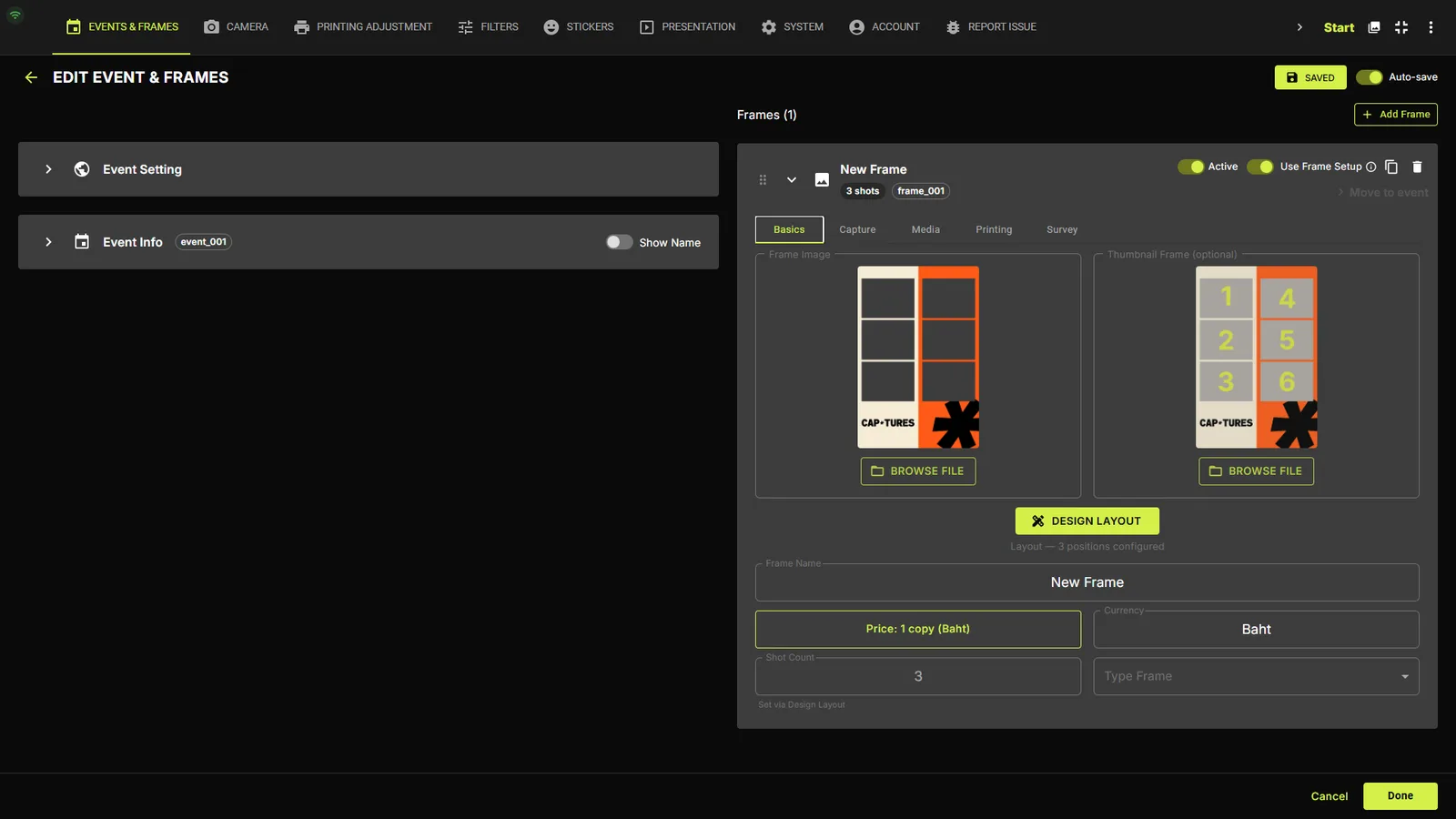

Frame — Basics tab
Expand a frame row to reveal five sub-tabs: Basics, Capture, Media, Printing and Survey.
Name, artwork & price
Set the Frame Name, BROWSE FILE for the frame artwork PNG and an optional Thumbnail Frame, set Price per copy and currency, and open DESIGN LAYOUT — the full Frame Designer (see its own chapter).

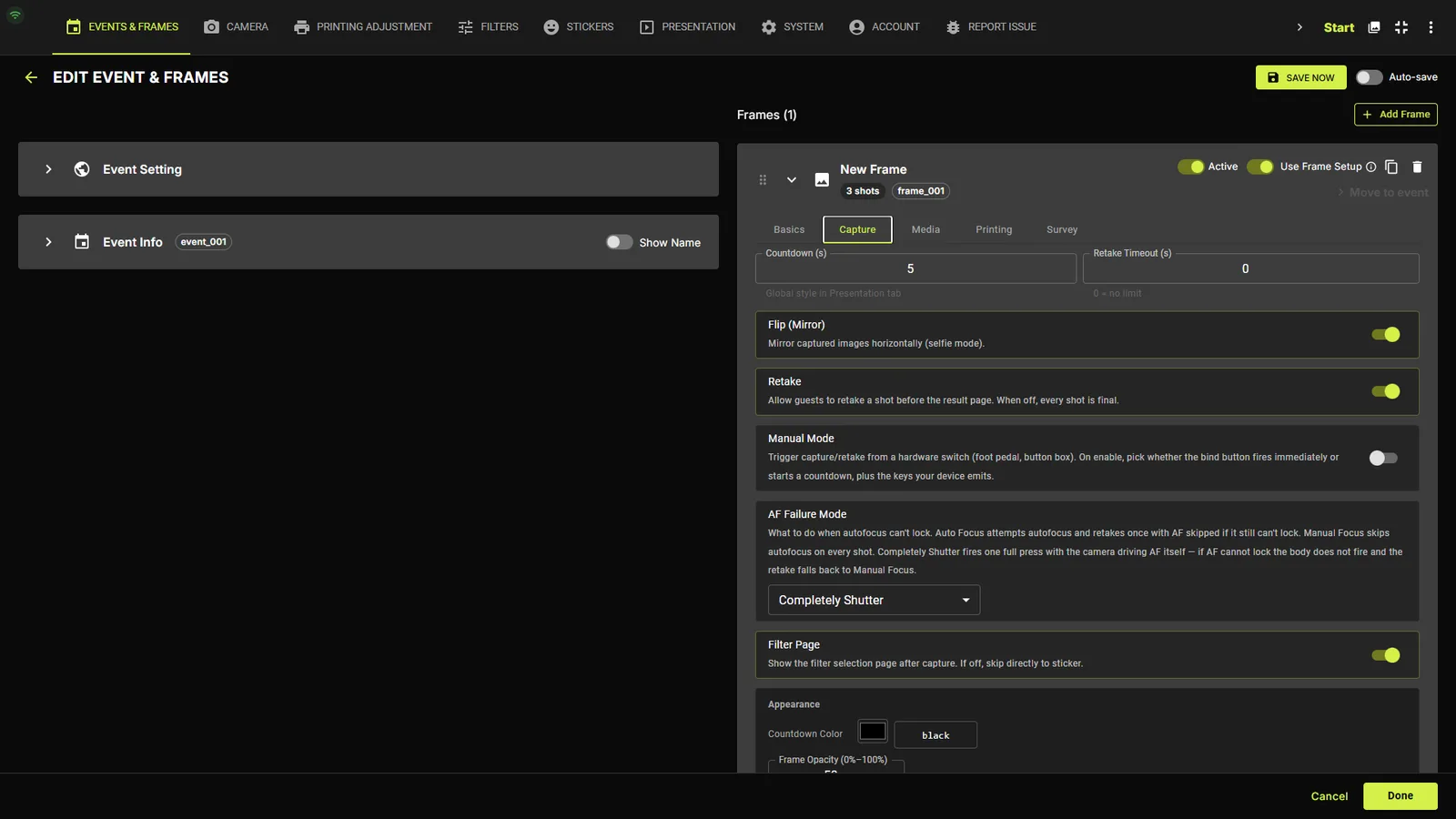

Frame — Capture tab
Everything about how this frame shoots. Exact controls, top to bottom:
Timing & behaviour
The top row holds Countdown (s) — seconds before each shot (global style set in the Presentation tab) — and Retake Timeout (s) where 0 = no limit.
| Control | What it does |
|---|---|
| Flip (Mirror) | Mirror captured images horizontally (selfie mode) |
| Retake | Allow guests to retake a shot before the result page; off = every shot is final (Pro) |
| Manual Mode | Trigger capture from a hardware switch (foot pedal / button box) — fires immediately or starts a countdown (Pro) |
| AF Failure Mode | What to do when autofocus can't lock: Auto Focus (retry once then skip AF), Manual Focus (skip AF every shot), or Completely Shutter (camera drives AF itself) |
| Filter Page | Show the filter selection page after capture; off = skip straight to sticker (Pro) |
| Sticker Page + Sticker Mode | Enable the decorate step; mode = Both, Sticker only, or Drawing only (Pro) |

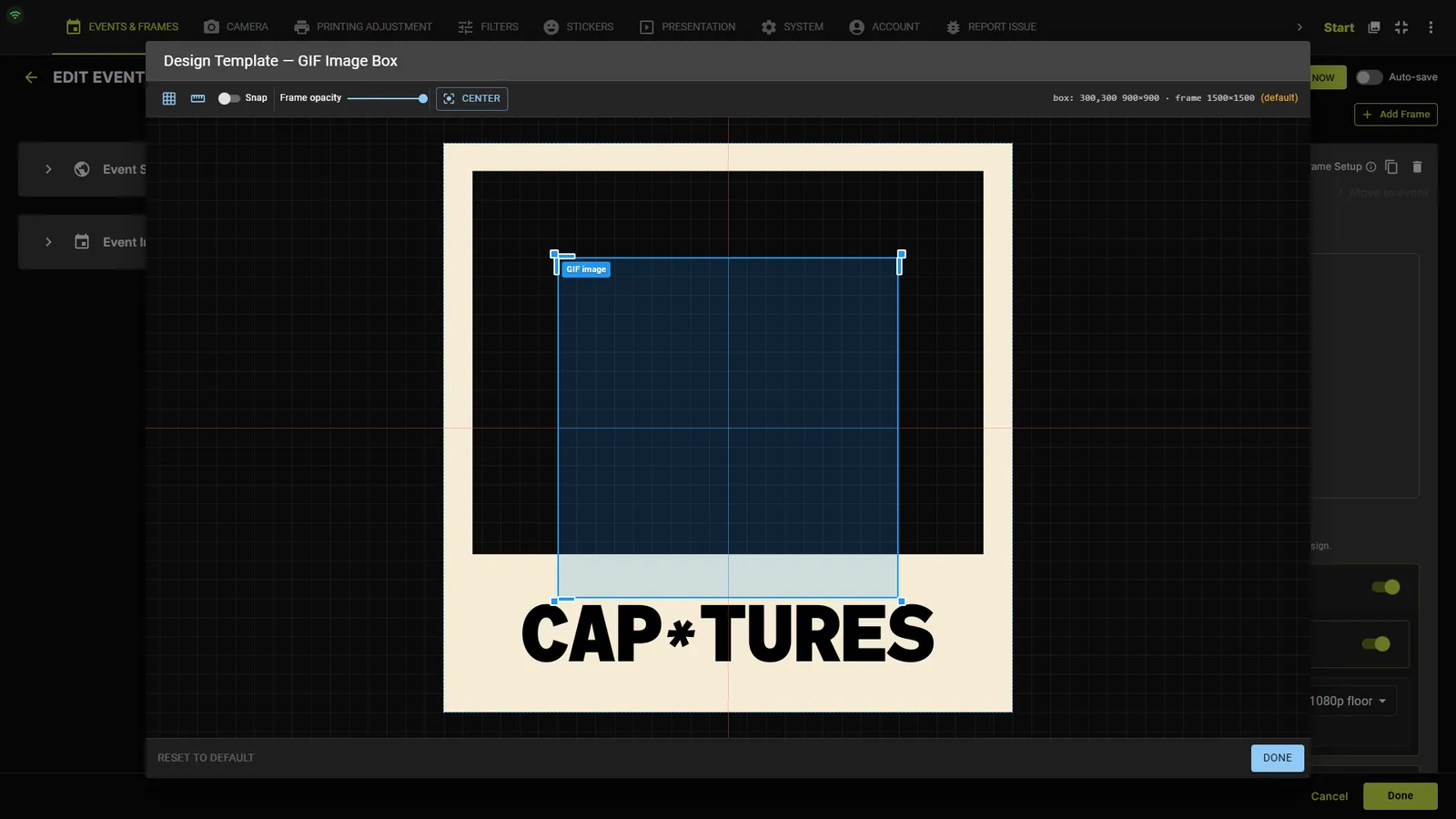

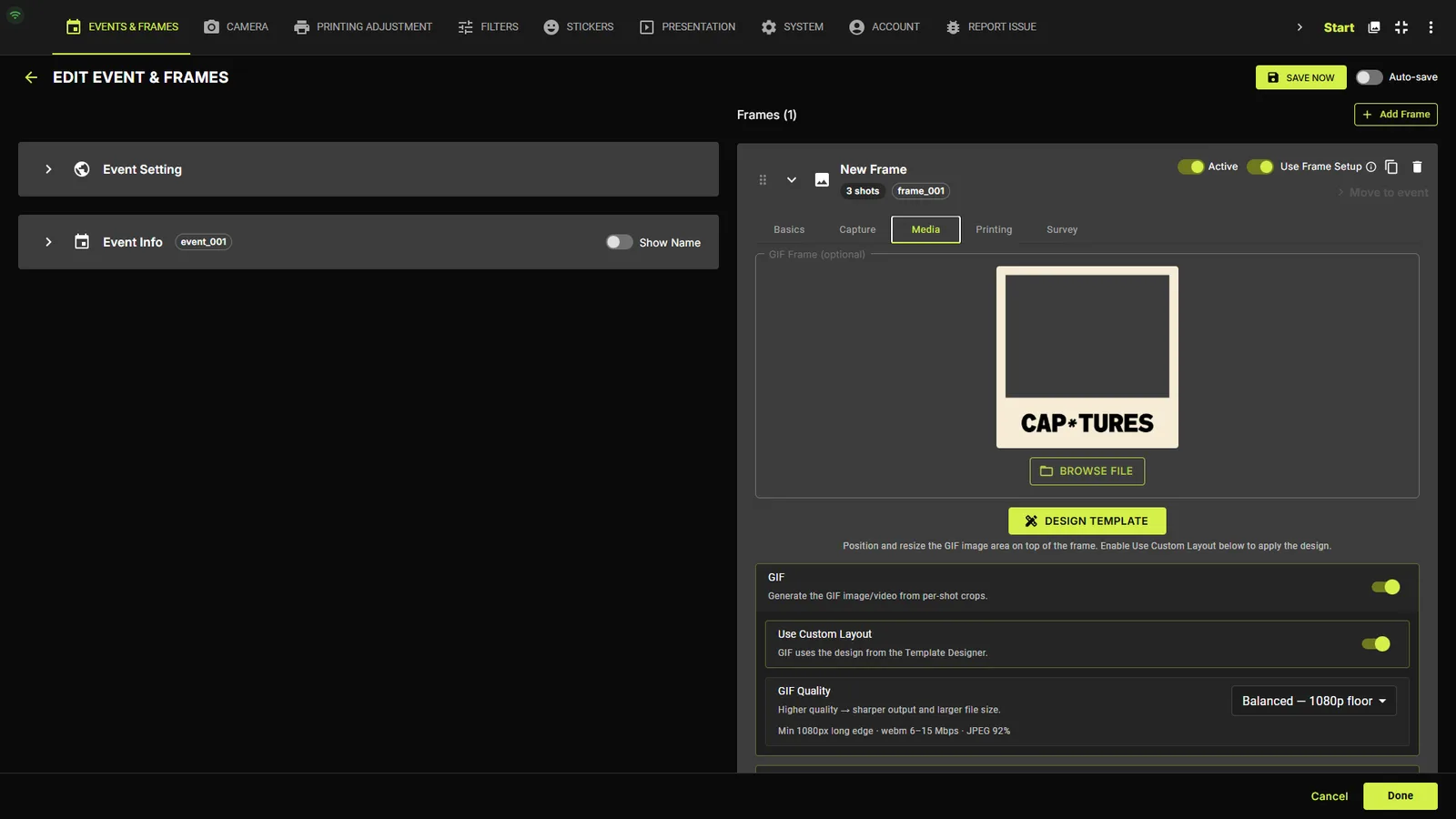

| GIF + GIF Quality | Produce an animated GIF from the shots; quality Balanced (1080p) / High (1280p) / Max (1920p), with optional custom GIF layout (Pro) |
| LIVE Photo | Generate an Apple Live Photo-style output (Pro) |

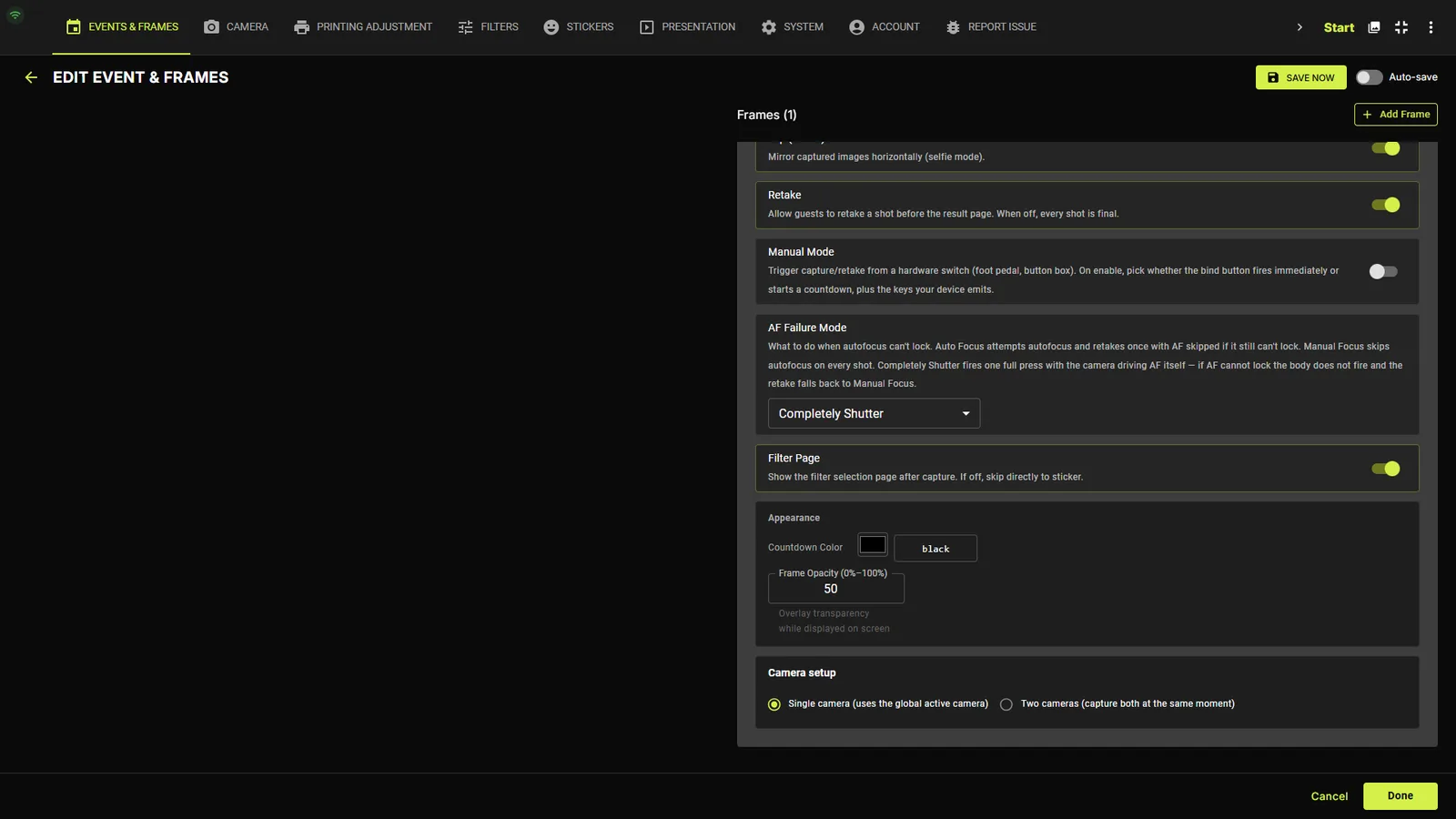

Appearance — countdown color & frame opacity
Countdown Color sets the countdown's color on the capture screen (color picker + name). Frame Opacity (0%–100%, default 50) is the transparency of the frame artwork overlaid on the live view while shooting — the print always uses the full-opacity artwork.
Camera setup (single / two cameras)Pro
At the bottom of the Capture tab: Single camera (uses the global active camera) or Two cameras (capture both at the same moment). The dual-camera options are covered in depth in the Frame Designer chapter.
Frame — Media, Printing & Survey tabs
Media — video result & slideshowPro
Toggle Video Result (an MP4 compiled from the session) and Slideshow generation, each with quality presets Balanced / High / Max.

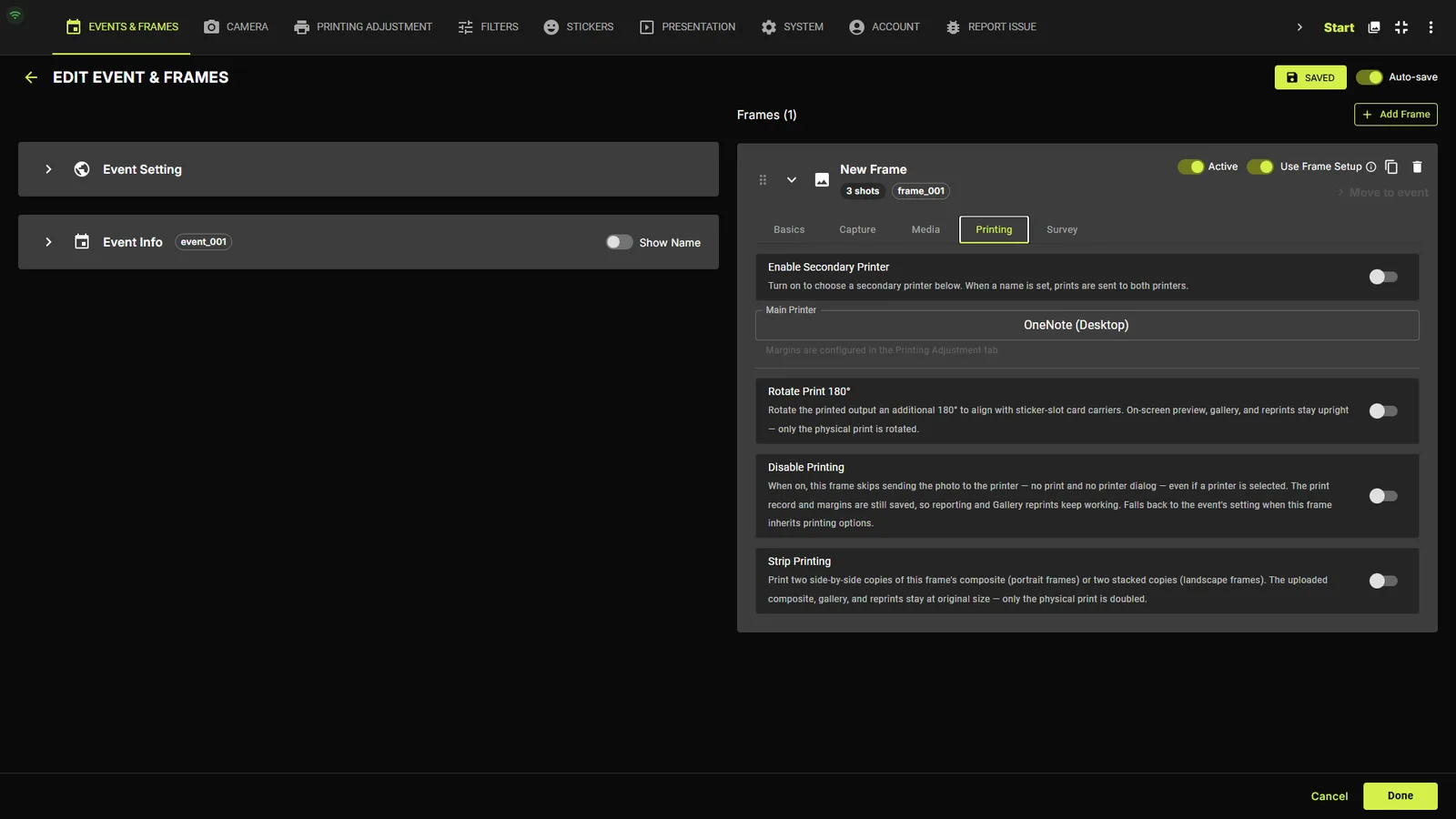

Printing — per-frame print behaviour
Choose Main Printer and an optional Secondary Printer, adjust Offset X/Y (mm), Scale (90–110%), Rotate Print 180°, enable Strip Printing for photo-strip layouts, or Disable Printing entirely for a digital-only frame.

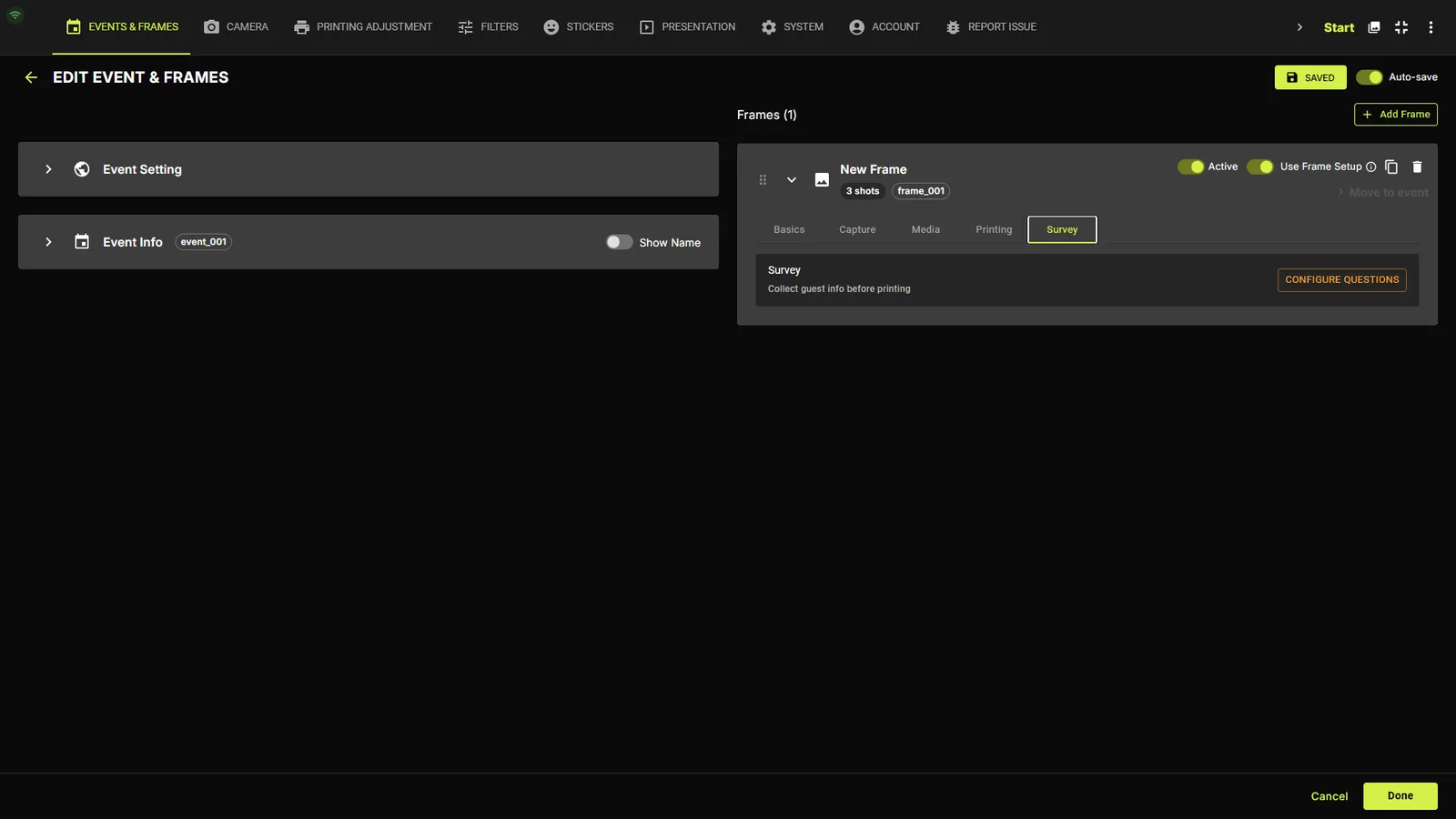

Survey — questions guests answerPro
Add questions guests answer during the flow. Each question has a type — Text input (with Allowed input and Max characters), Single choice, or Multiple choice with answer options. Answers can be printed onto the frame via the Frame Designer's SURVEY ANSWER element, and a per-question timeout lives in GUEST FLOW TIMEOUTS.
